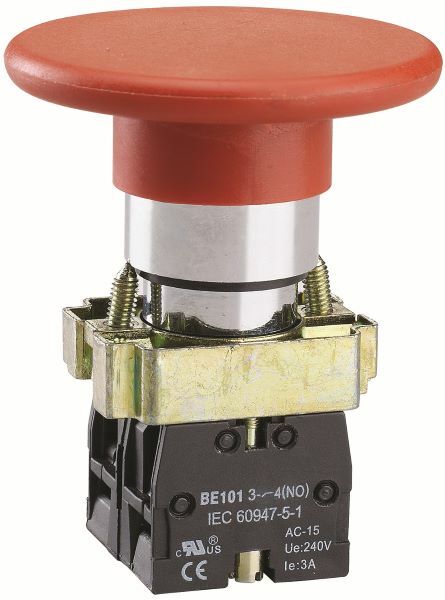

NOARK Electric Ex9PBR Series Non-Illuminated 60mm Mushroom Head Push Button

May 19, 2023
Ex9 PBR45 sm

NOARK ELECTRIC Ex9PBR Series Non-Illuminated Momentary Red 1 Normally-Open (NO) + 1 Normally Closed (NC) Contacts and 60 Millimeter (mm) Diameter Mushroom Head Push Button

  • Metal construction for superior durability and visual appeal
  • UL recognized component and labeled IP 40 (front) for protection against dust and water
  • Low behind the panel depth
  • Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products
  • Field convertible from maintained to momentary (available on maintained pushbuttons only)
  • More than one million mechanical operations on momentary and half million on maintained push buttons


  • UL Listed, File Number E353865
  • Certified for Canada According to CSA Standards
  • IEC/EN 60947
  • VDE 0660
  • CE Approved
  • RoHS Compliant

See also: 40mm Mushroom Head Push Button
